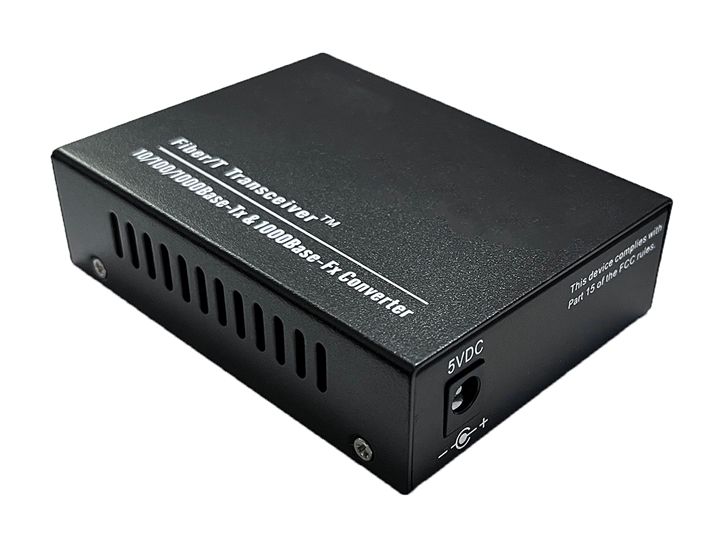

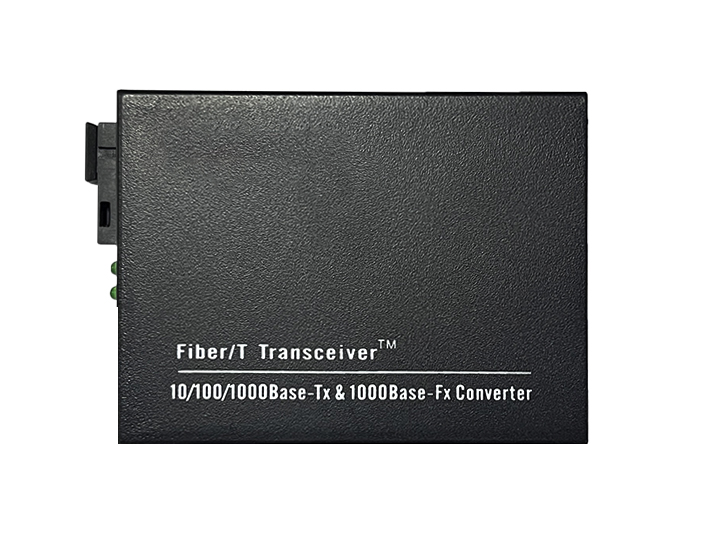

product Name:10/100/1000M Fiber Media Converter,SC Fiber port , Singlemode Sing Fiber ,25KM External Power Supply
Product No:006
Added Time:2024-04-23
Veiws:1088
|
 |
|
|
Datasheet converter GE
MAIN DESCRITION
1. Product Description
1000Mbps Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (T) and 1000M Fiber interface (LX). The traditional 10/100/1000M Ethernet can be extended to the distance of 100km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
2. Technical Parameters
|
Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter
|
|
Network Ports
|
1* 10/100/1000Base-T Ethernet Ports
|
|
Optical Ports
|
1 * 1000Base-LX
|
|
Transmission Rate
|
self-adaptive 10/100/1000M
|
|
Protocol supported
|
IEEE 802.3 (IEEE 802.3U 1000Base-TX/FX, IEEE 802.3z 1000Base_CX, IEEE 802.3x 10Base-T)
|
|
Level
|
Class 1 Laser Safety
|
|
Fiber Type
|
Single Fiber
|
|
Optic mode
|
Single Mode
|
|
Transmission mode
|
half / full duplex
|
|
Overall Power
|
≤1.5W
|
|
Receiving sensitivity:
|
≤ -25dBm
|
|
Min power
|
≥ -10 dBm
|
|
Ethernet interface
|
RJ45
|
|
Data transmission speed
|
≥ 1.25Gbps
|
|
Optic interface
|
SC /LC
|
|
BER
|
< 1/1000000000
|
|
Fiber distance
|
20 km
|
|
Wavelength
|
TX1310/RX:1550nm
|
|
Power supply:
|
AC110-240V, DC5V/0.6A ( +- 10%)
|
|
Working temperature
|
0~55°C
|
|
Storage temperature
|
-40°C~70°C
|
|

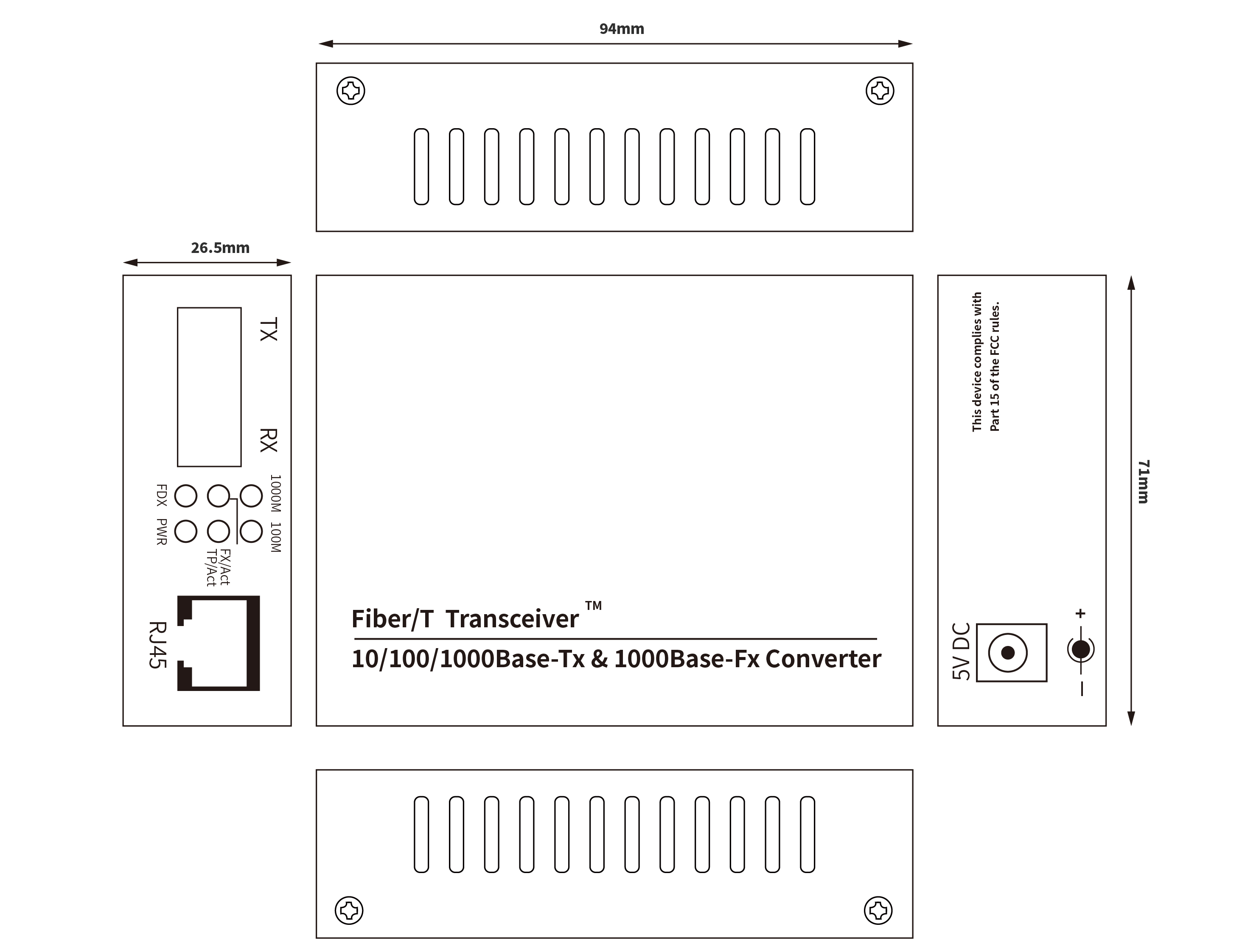

Product size (L*W*H)
|
94*71*26.5mm
|
|
Humidity
|
>85% (non-condensing)
|
|
Packing size (L*W*H)
|
228*115*50mm
|
|
N.W/G.W(g)
|
160g/302g
|
|
LED display
|
LED display of network and power supply status
|
|
Automatic identification
|
MDI/MDI-X cross line.
|
|
Application
|
For devices that comply with the Giga ethernet X standard
Works with network devices (Router, SWL2) using Giga Ethernet standard in use on the network
|
|
Certification
|
CE, ROHS , ISO 9001, ISO 14001
|
|
|
|
