Main Description

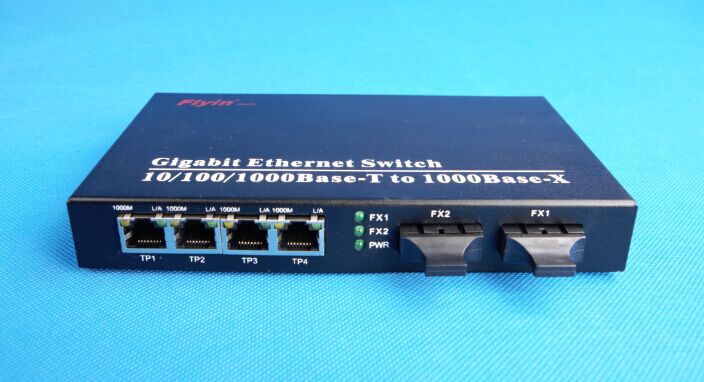

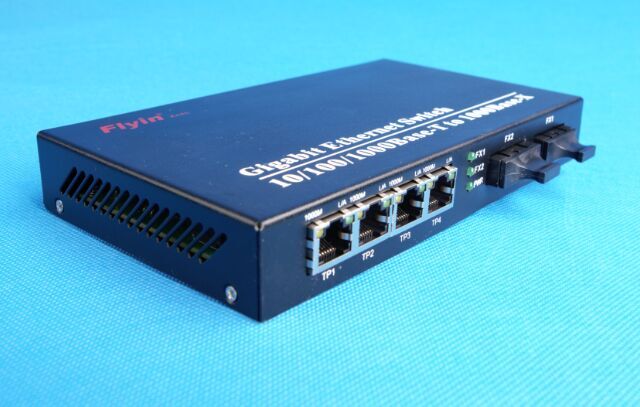

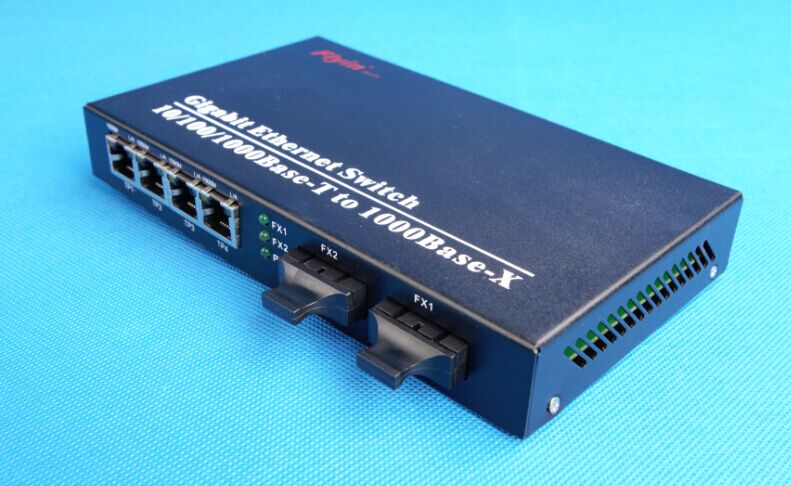

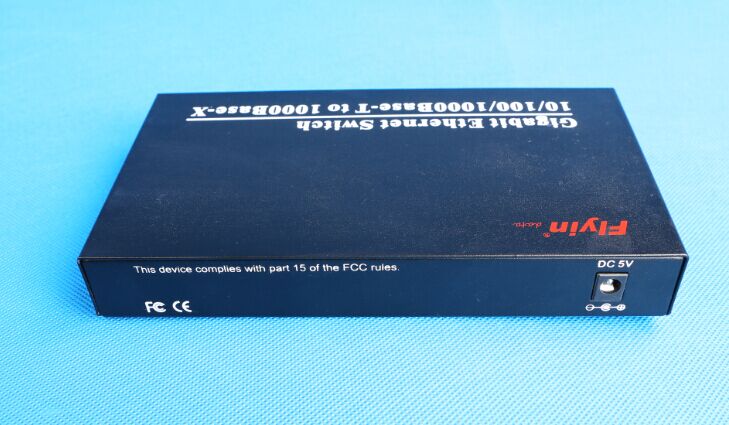

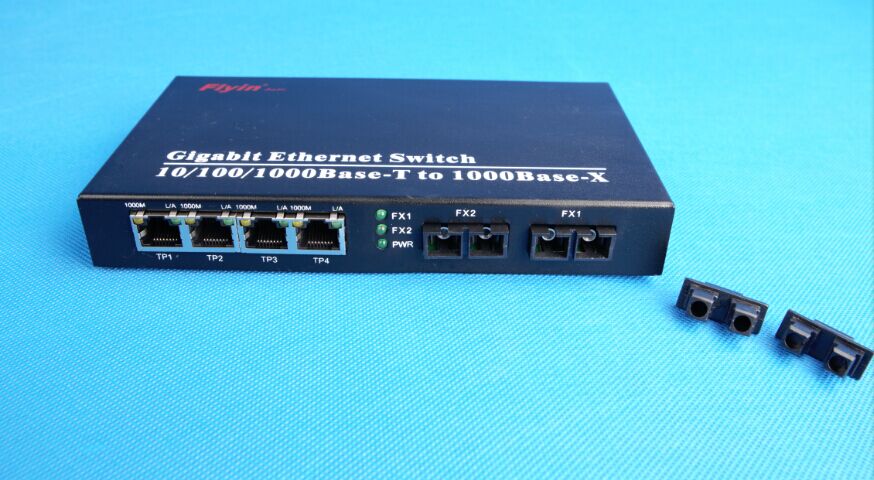

It belonged to the switch of 2000series,2 ports for 1000 Base SFP ,LC or SC,FC,ST, single mode and multi mode, single fiber

and dual fibers can be selected;the max transporting distance can reach 120km, It adopts high quality network switch chip,

and its all ports support non-blocking, across the packet forwarding; it is very suitable for data communication,video monitoring

and relay transmission equipment during to flexible and simple usage.

Technical parameters

(1) Operating standards:IEEE802.3/u/z/ab,10/100/1000Base-T and 1000Base-SX/LX

(2) Flow control

Full Duplex: IEEE802.3x flow control

Half duplex: back pressure flow control

(3) Connector: UTP: RJ-45:10/100/1000Mbps; SFP slot: 1000Mbps

(4).Ultra-low time-delay date transmission, completely transparent to the network protocol

(5).Port support IEEE802.X VLAN, port monitoring.IPV6 port monitoring flux is 4K,base on MARC`s Trunking

(6)Effectiveness of automatic link transfer

(7).Support for spanning tree and loop detection,IGMP,MLD

(8)Bult-in 9720Bytes long data packet

(9) Cable: UTP: Cat.5 or 6 UTP (the max distance up to 120m)

Multimode Fiber:50/125,62.5/125μm (the max distance up to 2KM)

Single mode Fiber: 9/125μm (the max distance up to 120km)

(10).Support 2 ports for SFP/FC/SC, to feel free to select optic modules for SFP/FC/SC to achieve single/multi mode or different transporting distances.

(11).Support hot-swappable, plug and play

(12) LED: PWR,F1 Link/Act,F2 Link/Act;TP1~TP4 Link/Act,TP1~TP4 100,TP1~TP4 1000;

Dynamic feedback the status for link connection and fault detect.
