product Name:Fiber Switches with 8*1000M FX+ 1*10/100/1000M UTP , SFP slot , external power supply
Product No:012
Added Time:2012-04-13
Veiws:6543
|
 |
|
|
Overview

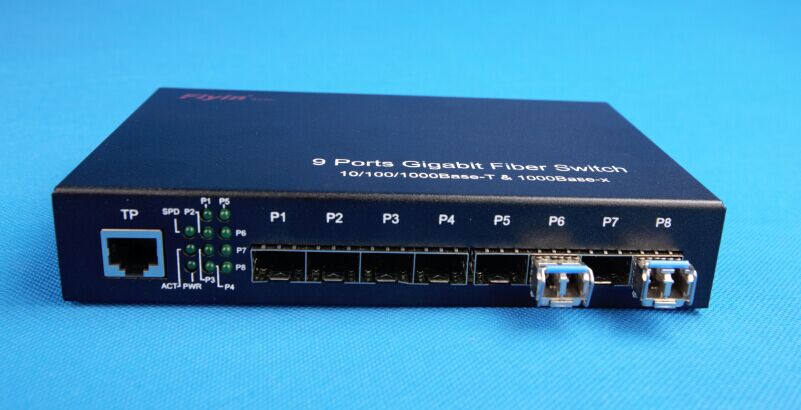

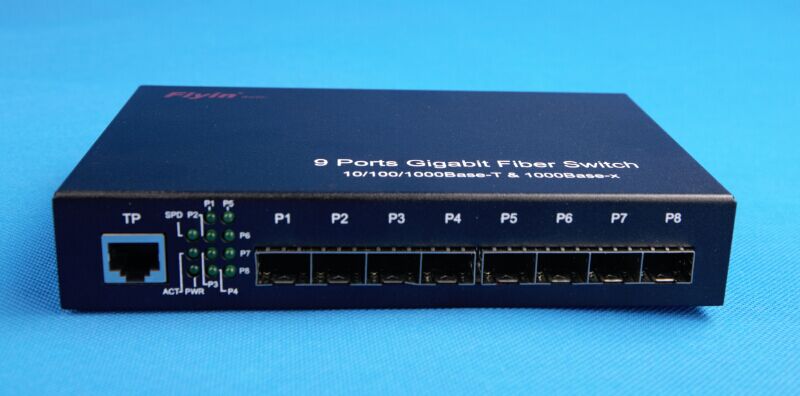

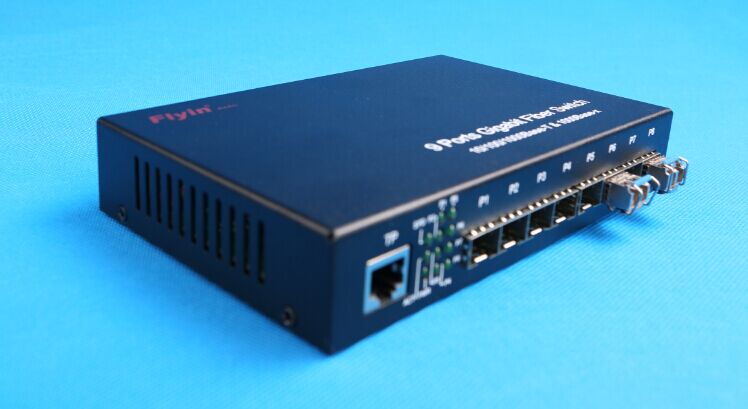

A nine ports 100M/1000M all optic fiber switch. It offers eight SFP fiber ports access and one Gigabit TP port
(1000M SFP port and 10/100/1000M adaptive RJ45 Ethernet interchange) uplink. It supports SFP modules hot
plug, and supports to work with fiber switches, fiber converters and other devices witch fiber ports.
Feature
-
Support maximum 8 SFP fiber ports and 1 GE Combo port (SFP fiber port/RJ45 port interchange)
-
Support SFP hot plug
-
Support each port full rate, full-duplex non-blocking forwarding
-
Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
-
All optic ports, strengthen the an-interference ability
-
Metal casing design, better for heat dissipation
|
Parameter
|
Specification
|
|
Standard
|
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Distance
|
100M SFP multi-mode:2Km
Single-mode:20/40/60/80/100/120Km
1000M SFP multi-mode:220m fiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Cat5:100m
|
|
Port
|
8 SFP fiber ports: 100Mbps or 1000Mbps
1 Gigabit Combo port:1 Gbps, 1000M SFP&10/100/1000M RJ45
|
|
MAC
|
8K
|
|
Buffer memory space
|
1Mbit
|
|
Bit error rate
|
<1/1000000000
|
|
MTBF
|
100000 hours
|
|
Power
|
DC12V/2A
|
|
Power consumption
|
10W
|
|
Working
temperature
|
-10~60℃
|
|
Storage temperature
|
-10~55℃
|
|
Humidity
|
5%~90% non-condensing
|
|
Dimension
|
177mm (L)×111mm(W)×33mm (D)
|
|
|
|
