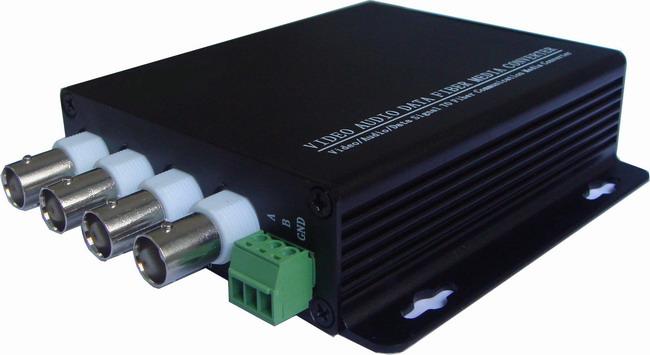

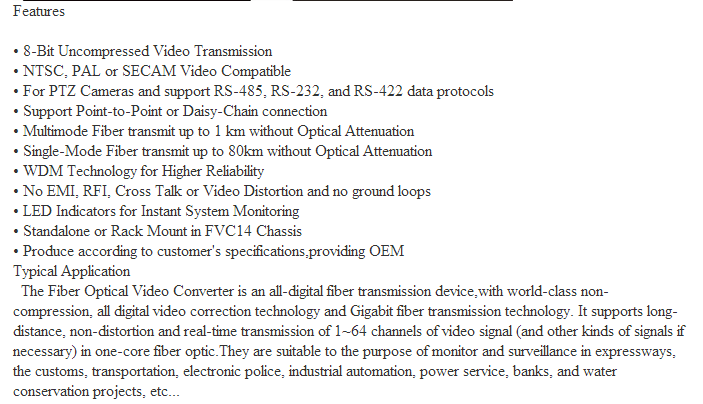

Specifications
Opitcal：
|
Wavelength
|
1310nm&1470nm~1610nm
|
|
Output Power
|
-9~-3dBm / -3~+2dBm
|
|
Optic fiber
|
50/125u multimode，62.5/125u multimode，9/125u single mode
|
|
Rx sensitivity
|
-28dBm
|
|
Optical connector
|
FC、ST、SC (optional)
|
|
Distance
|
0~1KM (MM) / 0~80KM (SM)
|
|
Video
|
|
Number of Channels
|
4
|
|
Input/output impedance
|
BNC 75Ω (unbalance)
|
|
Video bandwidth
|
5HZ—7.5MHZ
|
|
Standard video input/output voltage
|
1.0Vp-p
|
|
Video voltage range
|
0.6~2.0Vp-p
|
|
Differential Gain
|
< ±1.5%
|
|
Differential Phase
|
< ±1°
|
|
S/N Ratio:
|
67dB
|
|
Connecter
|
BNC
|
|
Data
|
|
Data protocol
|
RS232、RS422、RS485、Manchester，BIPHASE data
|
|
Data rate
|
0~500 Kbps
|
|
Error rate
|
< 10-9
|
|
Connector
|
Screw terminal strip
|
|
Electrical & Mechanical
|
|
Input Power Requirements:
|
DC 5V@2A
|
|
Power Adapter:
|
AC 100V~240V
|
|
Power Consumption:
|
< 3W
|
|
Stand-Alone Dimensions:
|
104mm × 104mm × 28mm
|
|
Shipping Weight:
|
(include Transmitter & Receiver ) 0.8kg
|
|
Environmental
|
|
Operating Temperature:
|
-20°C ~ +75°C
|
|
Storage Temperature:
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
Ordering Information & Optical Specifications
|
Model
|
Fiber Mode
|
Connector
|
Wavelengths
|
Optical Power Budget
|
Max Transmission
Distance
|
|
Transmitter
|
Receiver
|
|
FLYT4000SS1
|
FLYR4000SS1
|
SM
|
FC
|
1310nm
|
18dB
|
25km
|
|
FLYT4000MS1
|
FLYR4000MS1
|
MM
|
FC
|
1310nm
|
16dB
|
1km
|
|
FLYT4000SS3
|
FLYR4000SS3
|
SM
|
SC
|
1310nm
|
18dB
|
25km
|
|
FLYT4000SS2
|
FLYR4000SS2
|
SM
|
ST
|
1310nm
|
18dB
|
25km
|
Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors,
splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included
(for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.
• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to
change without further notice.
